MP3
player

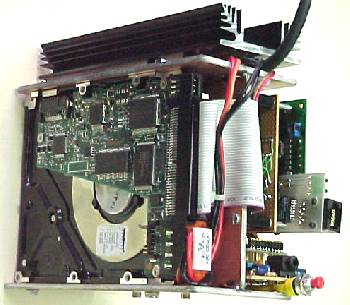

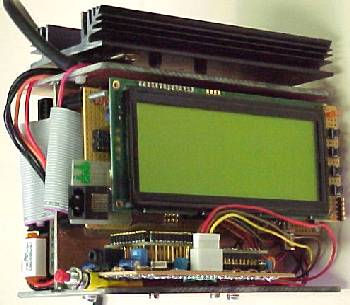

The prototype is a bit clumsy but at least it
has been working in my car for many weeks now.
A new version with a Laptop HDD is now working,
check out here.
Final version will be featuring:
-
89S8252 Atmel MCS51 compatible Controller
-
2.5 inch Hard disk interface using LBA addressing
-
Micronas Intermetall MAS3507 and DAC3550 MPEG
Chipset
-
EPP interface for fast data transfer
-
Optional FM modulator with RDS encoder for displaying
ID3 tags
-
Optional Ethernet Interface for transfers via
TFTP
-
Switch Mode Power Supply makes portable operation
possible (current consumtion is ca 250mA at 12V)
